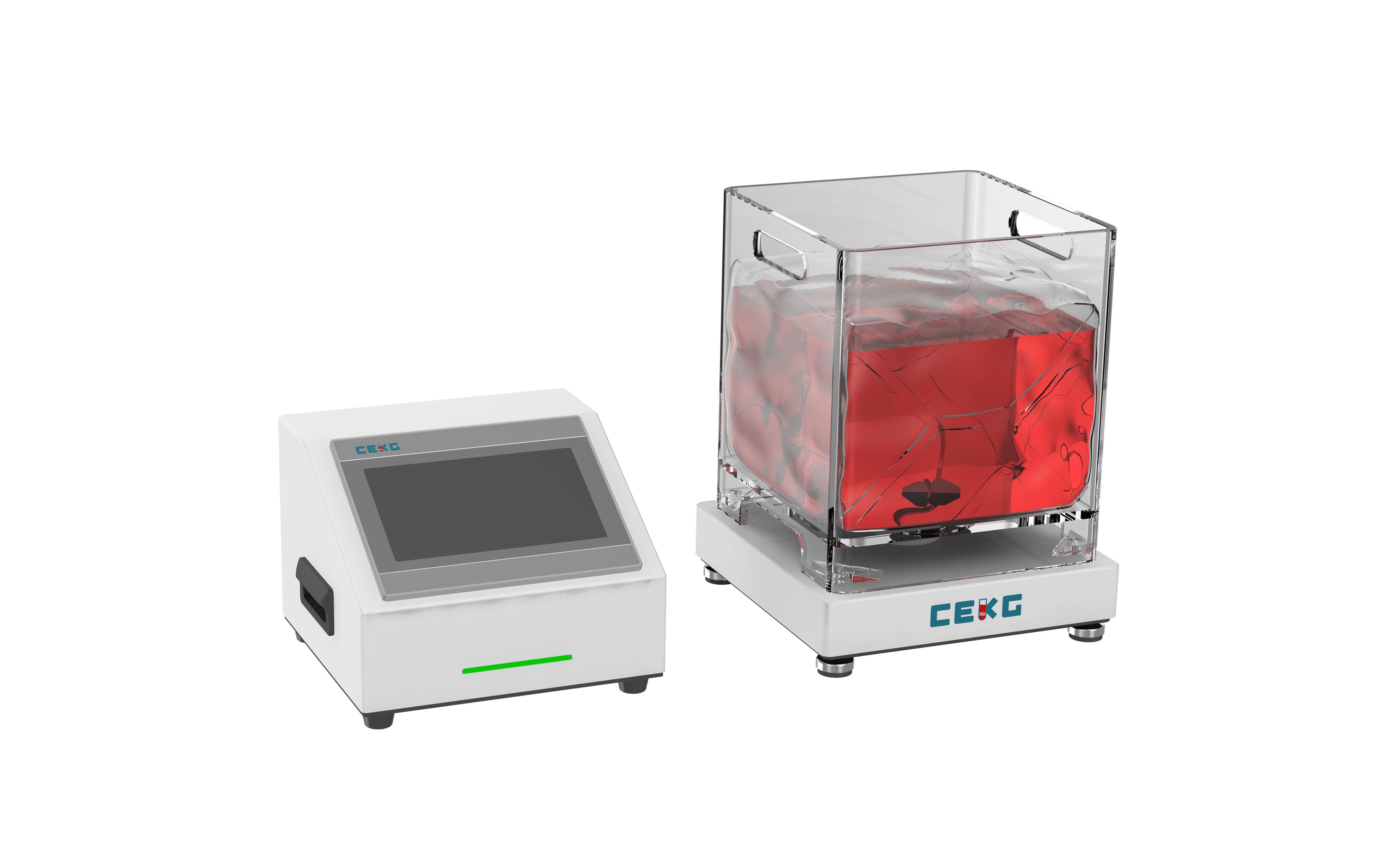

SKC400 Benchtop Single-Use Mixing System

Compact. Closed. GMP-Ready.

The SKC400 Benchtop Single-Use Mixing System is designed for small-volume liquid handling in bioprocessing R&D and production. It delivers reliable, sterile mixing for media preparation, buffer preparation, and intermediate harvests – eliminating the risks and validation burdens of traditional manual or stainless steel mixing.

The System Features:

• Benchtop footprint – fits easily in labs and pilot facilities

• Closed single-use design – no CIP/SIP, no cross-contamination

• Matching single-use mixing bags provided with the equipment

• Working volume: 2L to 50L

Compatible Bags (2L to 30L):

• Made of ULDPE with pre-installed single-use impeller

• Manufactured in our C+A grade cleanroom

• Full validation documentation (GMP-ready)

• Flexible customization – ports, fittings, film structure

Applications:

Suitable for culture media preparation, virus inactivation, and intermediate product mixing.

SKC400 Benchtop Single-Use Mixing System – Technical Specifications

Working Volume: 2L – 30L

Controller L×W×H: 300×320×245 mm
Controller Weight: 3 kg

Base L×W×H: 380×380×145 mm
Base Weight: Approx. 10 kg

Materials: ABS + Aluminium alloy
Support Material: Acrylic or stainless steel (optional)

Power: 100–240V AC, 50/60 Hz, 45W

Load Cell: Optional (C3 level sensor, range 0–50 kg, accuracy ±15 g)

Motor: Magnetic coupling stirring, stepper motor driver regulating speed
Max. RPM: 0–300 rpm, accuracy ±5 rpm

Ambient Temperature: 5–40°C
Humidity: ≤60% RH
